Power Capacitors

• Application
• General Purpose

• Material
• PVC

• Usage & Applications
• Electrical

• Warranty
• 1 Year

• Application
• Other, DC Link, Inverters, Renewable Energy, Power Electronics

• Breakdown Voltage
• >1200V DC

• Capacitance
• 100uF

• Capacitance Tolerance
• 5%

• Color
• Grey/Silver

• Current
• Other, High ripple current capability

• Frequency
• 50/60 Hz

• Insulation Resistance
• >30000 MF

• Insulation Voltage
• >1200V DC

• Loss Tangent
• tan 0.0015

• Material
• Metallized Polypropylene Film

• Operating Temperature
• -40C to +85C

• Product Type
• Other, DC Link Metallized Polypropylene Film Capacitor

• Rated Voltage
• 800V DC

• Ripple
• High Ripple Current

• Shape
• Cylinder

• Shell
• Plastic (Cylindrical)

• Size
• Approx. D76 x L156 mm

• Temperature Range
• -40C to +85C

• Terminal
• Screw Terminal

• Application
• Other, Power Electronics, Inverters, DC Link Circuits

• Breakdown Voltage
• > 1.5 Rated Voltage

• Capacitance
• 60F

• Capacitance Tolerance
• 5%

• Color
• White

• Current
• Other, High RMS Current Capability

• Frequency
• 50/60 Hz

• Insulation Resistance
• >= 5000 M F

• Insulation Voltage
• >2000V AC (60s)

• Lead Spacing
• Not Applicable (Screw terminals)

• Loss Tangent
• 0.0015 (Tan at 1kHz)

• Material
• Metallized Polypropylene Film

• Operating Temperature
• -40C to +85C

• Product Type
• Other, DC Link Capacitor

• Rated Voltage
• 700V DC

• Ripple
• High Ripple Current Endurance

• Shape
• Cylindrical

• Shell
• Plastic Cylindrical Case

• Size
• Approx. 80mm Diameter x 135mm Height

• Temperature Range
• -40C to +85C

• Terminal
• Screw Terminal

• Application
• Other, DC-Link, Power Electronics, Inverters

• Breakdown Voltage
• 1500VDC

• Capacitance
• 100F

• Capacitance Tolerance
• 5% (J)

• Color
• Black

• Current
• Other, High Ripple Current Capability

• Frequency
• Up to 100kHz

• Insulation Resistance
• >10,000 MF (at 25C, 100V, 1 min)

• Insulation Voltage
• 2500VAC, 2s

• Lead Spacing
• 42.5mm

• Loss Tangent
• 0.0015 (at 1kHz, 25C)

• Material
• Metallized Polypropylene Film

• Operating Temperature
• -40C to +85C

• Product Type
• Polypropylene Film Capacitor

• Rated Voltage
• 1000VDC

• Ripple
• High Ripple Current

• Shape
• Rectangular

• Shell
• Plastic Case

• Size
• Approximately 75mm x 50mm x 33mm

• Temperature Range
• -40C to +85C

• Terminal
• Radial Leads

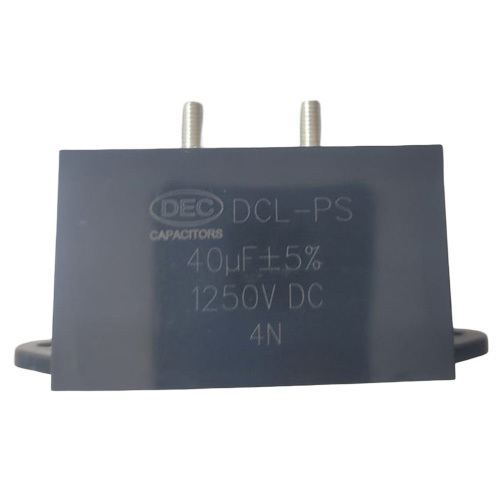

• Application
• Other, Power Electronics, DC Filtering, Industrial Equipment

• Breakdown Voltage
• 1.5 x Rated Voltage

• Capacitance
• 40F

• Capacitance Tolerance
• 5%

• Color
• Silver/Grey

• Current
• Other, High Pulse Current Capability

• Frequency
• 50/60Hz

• Insulation Resistance
• >5000 MF

• Insulation Voltage
• 3000V AC

• Lead Spacing
• Customized

• Loss Tangent
• 0.0015 at 1kHz

• Material
• Metallized Polypropylene Film

• Operating Temperature
• -25C to +70C

• Product Type
• Other, DCL-PS Power Capacitor

• Rated Voltage
• 1250V DC

• Ripple
• High Ripple Current

• Shape
• Cylinder

• Shell
• Cylindrical Aluminum Case

• Size
• Approx. 75mm Diameter x 150mm Height

• Temperature Range
• -25C to +70C

• Terminal
• Screw Terminal

• Application
• Other, Power Electronics, Filter Circuits, DC-Link, Industrial, Inverters

• Breakdown Voltage
• 1600V DC

• Capacitance
• 20F

• Capacitance Tolerance
• 5%

• Color
• Red

• Current
• Other, High Ripple Current Capability

• Frequency
• 50/60 Hz

• Insulation Resistance
• >17000 MF

• Insulation Voltage
• 2000V AC (60 secs)

• Lead Spacing
• Standard Axial

• Loss Tangent
• 0.001 (at 1kHz)

• Material
• Polypropylene Film

• Operating Temperature
• -40C to +70C

• Product Type
• Other, Film Capacitor

• Rated Voltage
• 800V DC

• Ripple
• High Ripple Current Endurance

• Shape
• Cylindrical

• Shell
• Plastic Cylindrical

• Size
• Approx. 50mm (Diameter) x 80mm (Length)

• Temperature Range
• -40C to +70C

• Terminal
• Axial Leads

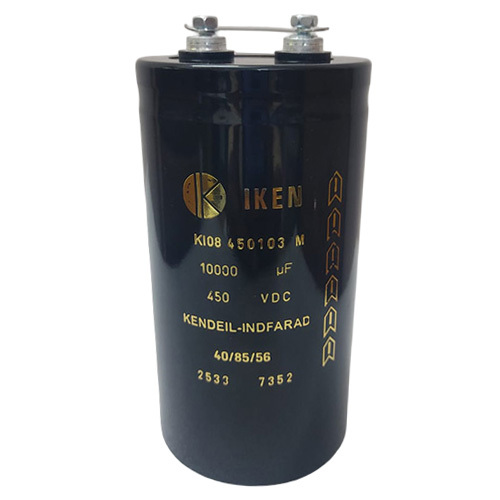

• Breakdown Voltage
• 540 VDC (max)

• Capacitance
• 10000 F

• Capacitance Tolerance
• 20%

• Color
• Black/Silver

• Current
• Other, High Ripple Current Capability

• Frequency
• 50/60 Hz

• Insulation Resistance
• >5000 MF (at 100 VDC, 1 min)

• Insulation Voltage
• 2,000 VDC (between terminals and case)

• Lead Spacing
• Depending on size, typical for screw terminals

• Loss Tangent
• 0.15 (at 120 Hz, 20C)

• Material
• Aluminum Case, Electrolytic Paper

• Operating Temperature
• -40C to +85C

• Product Type
• Other, Electrolytic Capacitor

• Rated Voltage
• 450 VDC

• Ripple
• 18.5 Arms (100 Hz, 85C)

• Shape
• Cylindrical

• Shell
• Aluminum Can (Cylindrical)

• Size
• Approx. 90 mm (diameter) x 220 mm (height)

• Surface Mount Land Size
• N/A (Through-hole/Screw terminal type)

• Temperature Range
• -40C to +85C

• Terminal
• Screw Terminal

• Breakdown Voltage
• >500 VDC

• Capacitance
• 4700 F

• Capacitance Tolerance
• 20%

• Color
• Black / Silver

• Current
• Other, High Ripple Current Rated

• Frequency
• 50/60 Hz

• Insulation Resistance
• >=3000 MF (20C, 1 min, 500VDC)

• Insulation Voltage
• 500 VDC

• Lead Spacing
• Screw terminal spacing as per datasheet, generally standard industrial format

• Loss Tangent
• 0.15 (120 Hz, 20C)

• Material
• Aluminium

• Operating Temperature
• -40C to +85C

• Product Type
• Other, Electrolytic Capacitor

• Rated Voltage
• 450 VDC

• Ripple
• High Ripple Current Capable

• Shape
• Cylindrical

• Shell
• Cylindrical Aluminium Can

• Size
• Approx. 77 mm Diameter x 195 mm Height

• Surface Mount Land Size
• Not applicable (Screw Terminal Mount)

• Temperature Range
• -40C to +85C

• Terminal
• Screw Terminal

• Breakdown Voltage
• >= 500 Vdc

• Capacitance
• 3300 F

• Capacitance Tolerance
• 20%

• Color
• Black

• Current
• Other, High Ripple Current

• Frequency
• 50/60 Hz

• Insulation Resistance
• >= 3000 MF (at 100V, 1 min, 20C)

• Insulation Voltage
• 500 Vdc

• Lead Spacing
• Not Applicable (Screw Terminal)

• Loss Tangent
• 0.20 at 100Hz, 20C

• Material
• Aluminum

• Operating Temperature
• -40C to +85C

• Product Type
• Other, Electrolytic Capacitor

• Rated Voltage
• 450 Vdc

• Ripple
• 6.3 A (RMS) at 105C, 100Hz

• Shape
• Cylindrical

• Shell
• Aluminum Can

• Size
• Approx. 77 mm (Height) x 35 mm (Diameter)

• Temperature Range
• -40C to +85C

• Terminal
• Screw Terminal

• Breakdown Voltage
• 1.15 rated voltage (for 2 minutes)

• Capacitance
• 10000F

• Capacitance Tolerance
• 20%

• Color
• Blue

• Current
• Other, High ripple current capability

• Frequency
• 50/60Hz

• Insulation Resistance
• >= 5000 MF at 100V, 1 min

• Insulation Voltage
• 2000V AC for 1 minute between terminals and can

• Lead Spacing
• As per case dimension, typically ~32mm

• Loss Tangent
• Max 0.15 at 100Hz, 20C

• Material
• Aluminum, Electrolyte

• Operating Temperature
• -40C to +85C

• Product Type
• Aluminum Electrolytic Capacitor

• Rated Voltage
• 250V DC

• Ripple
• High ripple current

• Shape
• Cylindrical

• Shell
• Aluminum Can

• Size
• Approx. 76mm (Dia) x 120mm (Length)

• Surface Mount Land Size
• Not Applicable (Screw Terminal)

• Temperature Range
• -40C to +85C

• Terminal
• Screw Terminal

• Breakdown Voltage
• >500 VDC

• Capacitance
• 15000 F

• Capacitance Tolerance
• 20%

• Color
• Blue

• Current
• Other, High Ripple Current Capability

• Frequency
• 50/60 Hz

• Insulation Resistance
• > 5,000 MF (100V, 1min, 20C)

• Insulation Voltage
• 2,000 VAC for 60s

• Lead Spacing
• Screw terminals, standard spacing

• Loss Tangent
• 0.20 (100Hz, 20C)

• Material
• Aluminum

• Operating Temperature
• -40C to +85C

• Product Type
• Other, Electrolytic Capacitor

• Rated Voltage
• 450V DC

• Ripple
• 36.6 A RMS (100Hz, 85C)

• Shape
• Cylindrical

• Shell
• Aluminum Can

• Size
• Approx. 77 mm Diameter x 220 mm Height

• Surface Mount Land Size
• Not applicable (screw terminal)

• Temperature Range
• -40C to +85C

• Terminal
• Screw Type
