IGBT Power Module

• Application
• Inverters, UPS, motor drives, power supplies

• Capacity
• Current 50A to 200A (model dependent)

• Color
• Black

• Components
• Insulated Gate Bipolar Transistors, Freewheeling Diode

• Current Rating
• Rated 100A

• Dimension (L*W*H)
• 107mm x 62mm x 36mm (approx.)

• Features
• Compact design, high efficiency, low saturation voltage, robust construction

• Frequency
• Up to 20kHz

• Function
• Switching and amplification in power electronics

• IP Rating
• IP20

• Input
• Signal control input

• Interface
• Standard screw terminals

• Operating Temperature
• -40C to +150C

• Output
• High-power output

• Power Source
• External power (electrical circuit)

• Power Supply
• AC/DC

• Product Type
• IGBT Power Module

• Rated Voltage
• 1200V

• Response Time
• Fast switching, typically <1s

• Size
• Standard module size

• Supply Voltage
• 600V to 1700V (model dependent)

• Thermal Conductivity
• High, baseplate for effective thermal management

• Thickness
• 36mm (approx.)

• Usage
• Industrial power control

• Weight
• Approx. 400g

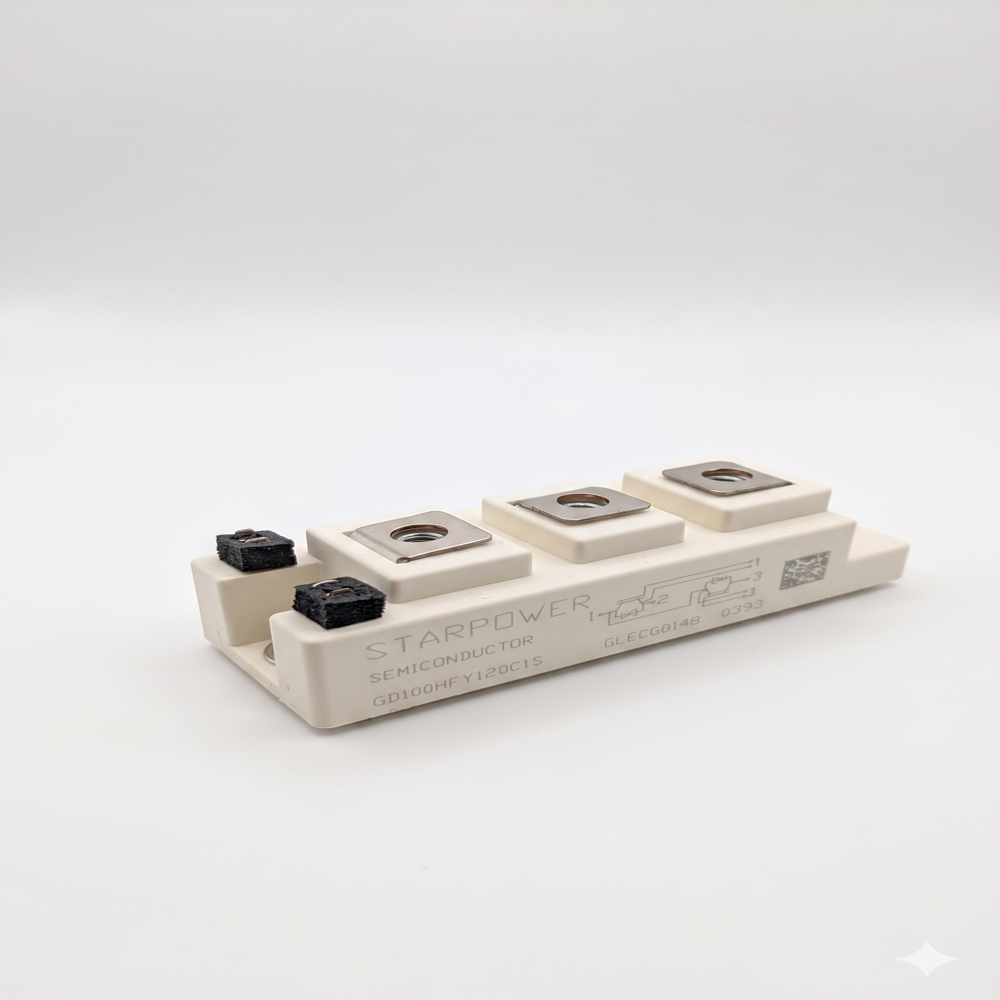

• Color
• WHITE

• Current Rating
• 100A

• Frequency
• 20 Kilohertz ( KHZ )

• Function
• IGBT

• Rated Voltage
• 1200 Volt (V)

• Weight
• 150 Grams (g)

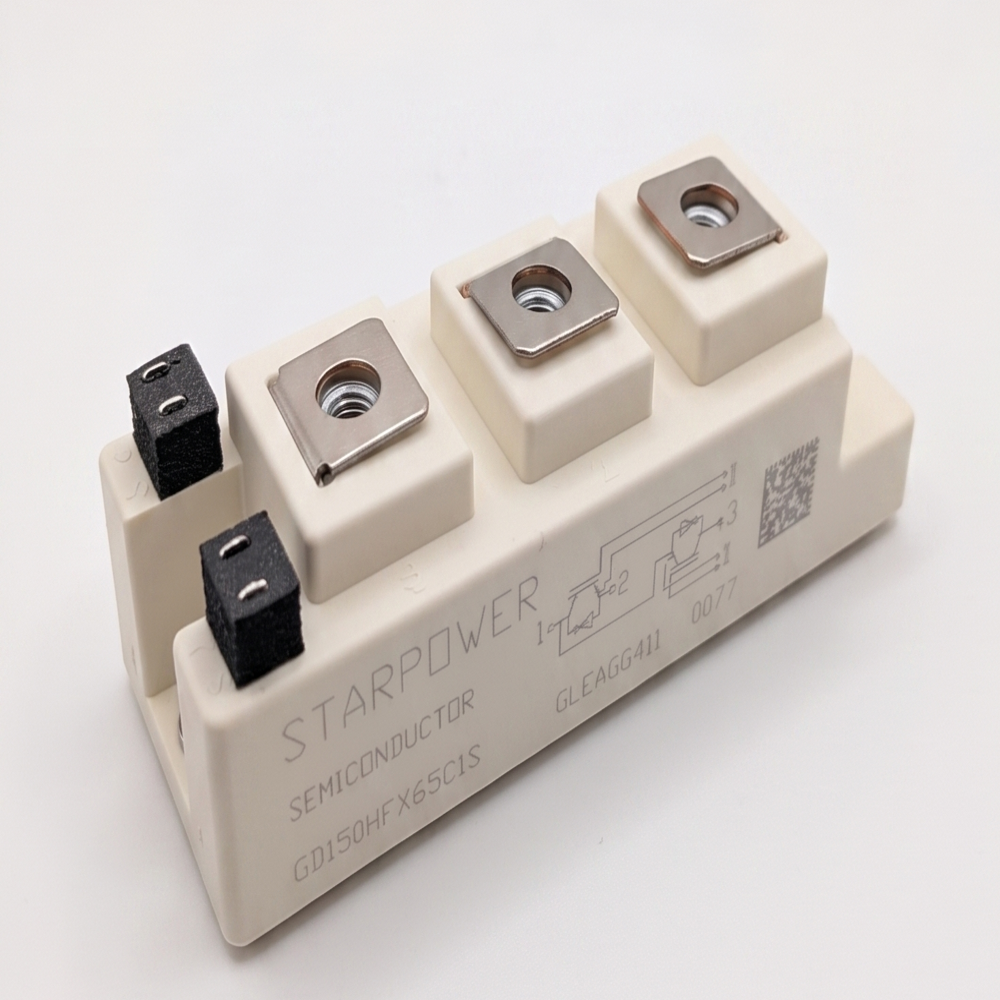

• Color
• WHITE

• Current Rating
• 150A

• Function
• IGBT

• Rated Voltage
• 650 Volt (V)

• Weight
• 150 Grams (g)

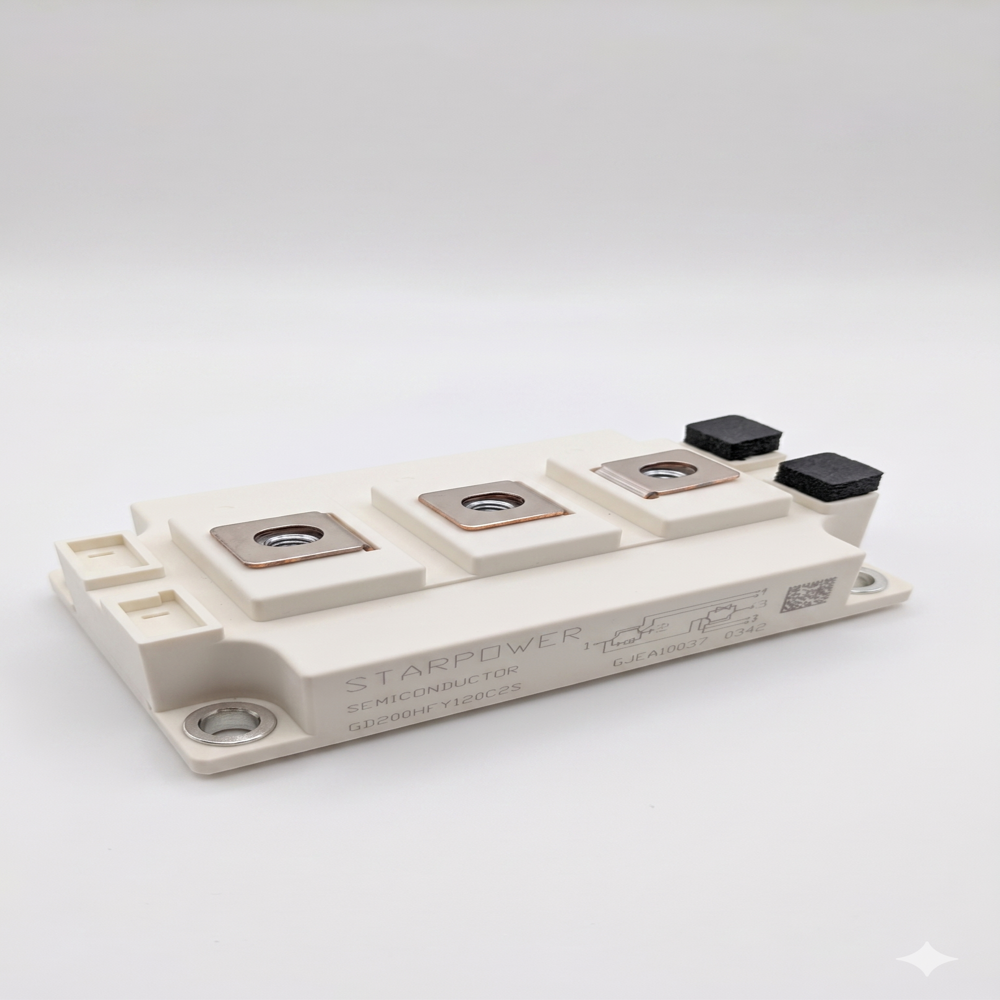

• Application
• Industrial, Automation, Motor Control, Renewable Energy

• Capacity
• 200A

• Color
• White / Metallic Contacts

• Components
• Insulated Gate Bipolar Transistor, Free-wheeling Diode

• Current Rating
• 200A

• Dimension (L*W*H)
• Approx. 106mm x 62mm x 30mm

• Features
• High current handling, low saturation voltage, robust design, compact size

• Frequency
• Depends on application (typically up to 20kHz)

• Function
• Switching and amplifying electronic signals

• IP Rating
• Unspecified

• Input
• Control Signal

• Interface
• Screw Terminal/Pin Interface

• Operating Temperature
• -40C to +150C (Junction Temperature)

• Output
• Switched Power

• Power Source
• External DC Supply

• Power Supply
• DC

• Product Type
• IGBT Module

• Rated Voltage
• 1200V

• Response Time
• Fast switching

• Size
• Standard module size

• Supply Voltage
• 1200V

• Thermal Conductivity
• High - copper baseplate for efficient heat dissipation

• Thickness
• Standard module profile

• Usage
• Power Electronics, Inverter, Motor Drives, UPS, Industrial Applications

• Weight
• Approx. 400g
