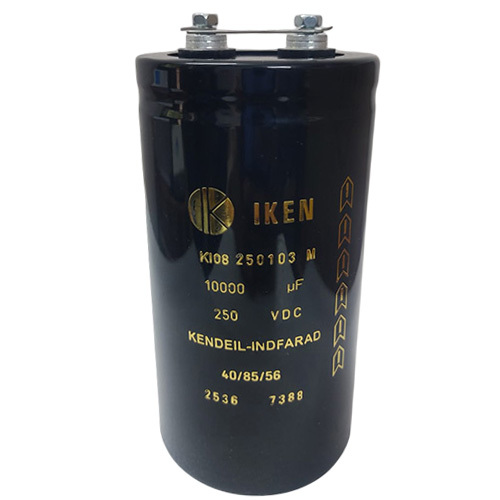

DC Capacitor 10000uf 250Vdc

Name: DC Capacitor 10000uf 250Vdc
Brand: KHANDELWAL POWERTRONICS
Price: 1250.0 INR
Availability: InStock

Price 1250.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DC Capacitor 10000uf 250Vdc Specification

Insulation Voltage
2000V AC for 1 minute between terminals and can

Frequency
50/60Hz

Insulation Resistance
>= 5000 MF at 100V, 1 min

Lead Spacing
As per case dimension, typically ~32mm

Current
High ripple current capability

Surface Mount Land Size
Not Applicable (Screw Terminal)

Loss Tangent
Max 0.15 at 100Hz, 20C

Breakdown Voltage
1.15 rated voltage (for 2 minutes)

Product Type
Aluminum Electrolytic Capacitor

Material
Aluminum, Electrolyte

Capacitance
10000F

Shell
Aluminum Can

Operating Temperature
-40C to +85C

Rated Voltage
250V DC

Ripple
High ripple current

Capacitance Tolerance
20%

Temperature Range
-40C to +85C

Shape
Cylindrical

Terminal
Screw Terminal

Size
Approx. 76mm (Dia) x 120mm (Length)

Color
Blue

Polarity
Polarized

Leakage Current
3mA after 5 min at rated voltage

Packing Type
Bulk

Life Expectancy
5000 hours @ 85C

Weight
Approx. 430g

Mounting Type
Screw Mount

Series
Iken

Safety Approval
RoHS Compliant

Maximum ESR
10 m @ 100Hz, 20C

Standards
IEC 60384-4

DC Capacitor 10000uf 250Vdc Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About DC Capacitor 10000uf 250Vdc

Kendeil-Indfarad IKEN 10000F 450VDC Screw Terminal Capacitor

Product Description

The Kendeil-Indfarad IKEN Series is a high-performance, industrial-grade aluminum electrolytic capacitor designed for high-power applications requiring reliability and long life expectancy. Featuring robust screw terminals for secure electrical connections, this large canister capacitor delivers a high capacitance of 10,000F and a high working voltage rating of 450VDC. Built to withstand demanding industrial environments, it operates reliably within a wide climatic category, making it an excellent choice for heavy-duty power electronics.

Key Technical Specifications

Brand: Kendeil-Indfarad (IKEN Series)
Part Number / Model: KI08
Capacitance: 10,000 F (Microfarads)
Voltage Rating: 450 VDC
Terminal Type: Screw Terminals (M5/M6 heavy-duty studs)
Climatic Category: 40/085/56 (Minimum temperature -40C, Maximum temperature +85C)

Key Features

High Ripple Current Capability: Engineered to handle significant ripple currents, ensuring smooth power delivery and filtering.
Premium Build Quality: Features a robust aluminum canister with heavy-duty top screw terminals designed to handle high vibration and high current loads.
Long Operational Life: Optimized internal construction ensures excellent thermal dissipation and prolonged operational lifespan under continuous load.
Industrial Standard Compliance: Manufactured by Kendeil-Indfarad, matching strict industrial quality benchmarks for power transmission and storage.

Applications

This high-capacity, high-voltage capacitor is widely used in power conversion, energy storage, and industrial automation. Primary applications include:

Inverters and Frequency Converters: Used for DC-link filtering in variable frequency drives (VFDs), motor speed controllers, and solar/wind grid inverters.
Uninterruptible Power Supplies (UPS): Provides critical energy storage and voltage smoothing in heavy-duty industrial UPS systems.
Industrial Power Supplies: Ideal for large switch-mode power supplies (SMPS) and high-power DC welding equipment.
Medical Equipment: Utilized in high-energy medical devices like X-ray machines and MRI scanners that require sudden bursts of filtered power.
Traction and Transport: Applied in railway power substations, electric vehicle charging infrastructure, and heavy transport power systems.

Safety & Handling Note

Warning: Due to the massive energy storage capacity , this capacitor can hold a lethal electrical charge long after power is disconnected. Always ensure the capacitor is safely discharged through an appropriate bleeding resistor before handling or installation.

Robust Design for Reliable Performance

Built with a durable aluminum shell and high-quality electrolyte, the Kendeil Iken 10000uF 250Vdc capacitor is designed for extended use in challenging environments. Screw terminals enable secure mounting and reliable connectivity, while high ripple current capability ensures stable operation in critical power systems. Its wide operating temperature range enhances flexibility in application.

Compliance and Safety Standards

Conforming to IEC 60384-4 standards and RoHS safety approvals, this capacitor assures reliable and safe operation in industrial setups. Its breakdown and insulation voltages meet stringent criteria, safeguarding both equipment and personnel during use. These features make it an optimal and compliant choice for professional electrical applications.

Versatile Application in Industry

Ideal for power supplies, motor drives, and other industrial equipment in India, the Kendeil Iken 10000uF capacitor supports bulk packaging for efficient installation in high-volume settings. Its high capacitance and tolerance of up to 20% accommodate demanding power regulation and energy storage requirements in modern electrical systems.

FAQ's of Kendeil Iken 10000uf 250Vdc Capacitor:

Q: How do I install the Kendeil Iken 10000uF 250Vdc capacitor?

A: This capacitor uses screw terminals and is designed for screw mount installation. Ensure the mounting holes align with the terminal spacing, typically around 32mm, and securely fasten the capacitor for a stable electrical connection.

Q: What are the primary benefits of using this capacitor in industrial applications?

A: Key advantages include high ripple current capability, robust insulation and breakdown voltages, extended lifespan at high temperatures, and compliance with international safety standards, making it suitable for demanding environments.

Q: Where is the Kendeil Iken capacitor typically used?

A: It is widely used in power supplies, motor drives, inverters, and large-scale energy storage solutions-particularly in industrial, commercial, and automation sectors across India.

Q: What is the process to check the health of the capacitor over time?

A: Periodically inspect for physical changes, measure the capacitance and ESR at the recommended frequency (100Hz), and check for leakage current as specified. Replace if values exceed tolerance or if visible damage occurs.

Q: When is it necessary to replace the capacitor?

A: Replace the capacitor when it reaches its rated life expectancy (5,000 hours at 85C) or if measurements show excessive ESR, leakage current, or decreased capacitance, or when physical degradation such as bulging is observed.

Q: How does this capacitor handle high ripple currents?

A: It is engineered to tolerate high ripple currents, ensuring stable operation and minimal heat build-up during prolonged use, crucial for maintaining reliable performance in power-intensive applications.
