DC Electrolytic Capacitor

• Application
• Other, Power Supplies, LED Drivers, Audio Equipment, Industrial Electronics

• Breakdown Voltage
• 63V

• Capacitance
• 470uF

• Capacitance Tolerance
• 20%

• Color
• Black & Silver

• Current
• Other, Ripple Current: 340mA

• Frequency
• 50/60 Hz

• Insulation Resistance
• >100 M (at 100V, 1 minute)

• Insulation Voltage
• 100V DC

• Lead Spacing
• 5.0 mm

• Loss Tangent
• 0.20 at 120Hz

• Material
• Aluminum Electrolyte, Aluminium Case

• Operating Temperature
• -40C to +85C

• Product Type
• Other, DC Electrolytic Capacitor

• Rated Voltage
• 50V DC

• Ripple
• 340mA (120Hz, 85C)

• Shape
• Cylindrical

• Shell
• Aluminum Canister

• Size
• 10mm (Diameter) x 20mm (Length)

• Surface Mount Land Size
• N/A (Radial Leaded)

• Temperature Range
• -40C to +85C

• Terminal
• Radial Lead

• Application
• Other, Power Supply, Industrial, Inverter, DC Link

• Breakdown Voltage
• 500 VDC

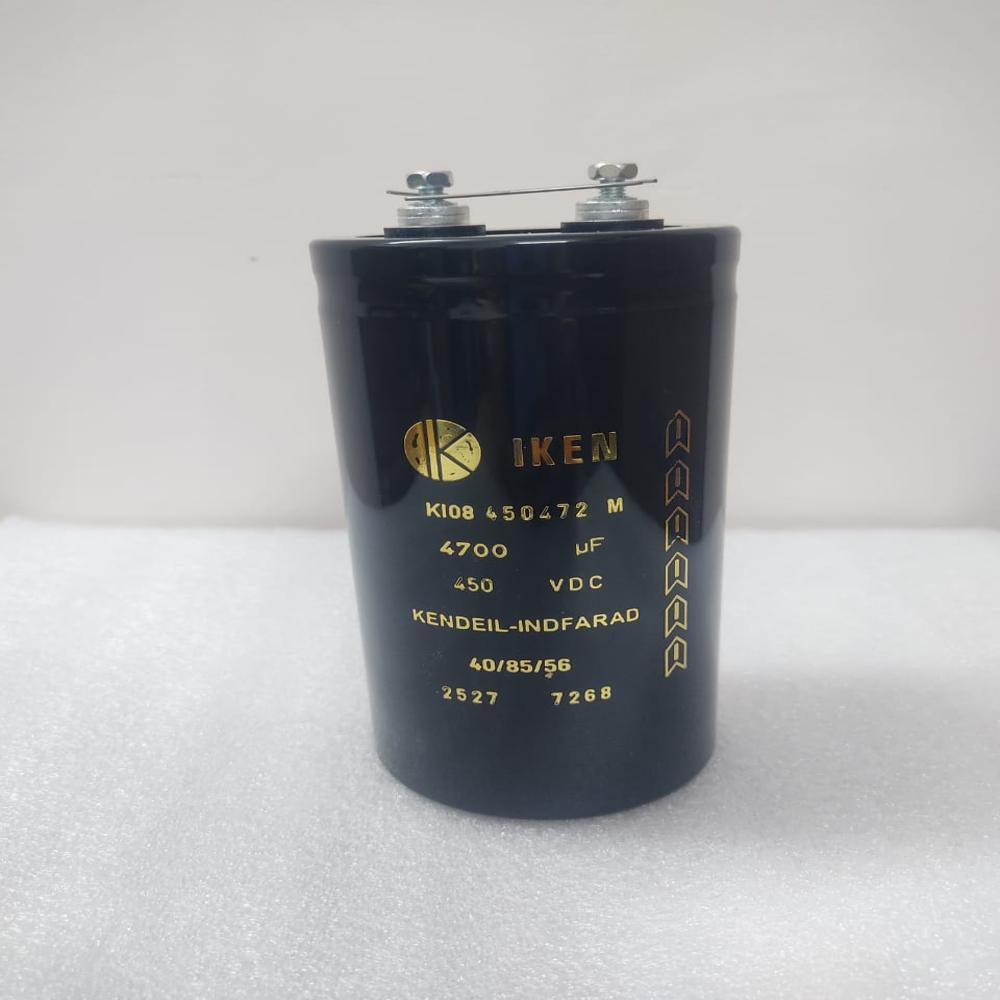

• Capacitance
• 4700 F

• Capacitance Tolerance
• 20%

• Color
• Black with Gold Lettering

• Current
• Other, High Ripple Current Endurance

• Frequency
• 50/60 Hz

• Insulation Resistance
• >100 M at 100VDC, 60 seconds

• Insulation Voltage
• 2000 VDC (Between terminals and case)

• Lead Spacing
• Not applicable (Screw terminal)

• Loss Tangent
• 0.15 at 100 Hz

• Material
• Aluminum Electrolytic

• Operating Temperature
• -40C to +85C

• Product Type
• Other, DC Capacitor

• Rated Voltage
• 450 VDC

• Ripple
• High Ripple Current Capability

• Shape
• Cylindrical

• Shell
• Cylindrical Aluminum Can

• Size
• Approx. 76 mm (Diameter) x 136 mm (Height) [size may vary slightly depending on manufacturer series]

• Temperature Range
• -40C to +85C

• Terminal
• Screw Terminal

• Application
• Other, Power Electronics, Inverter, Power Supply, Filtering

• Breakdown Voltage
• >500VDC

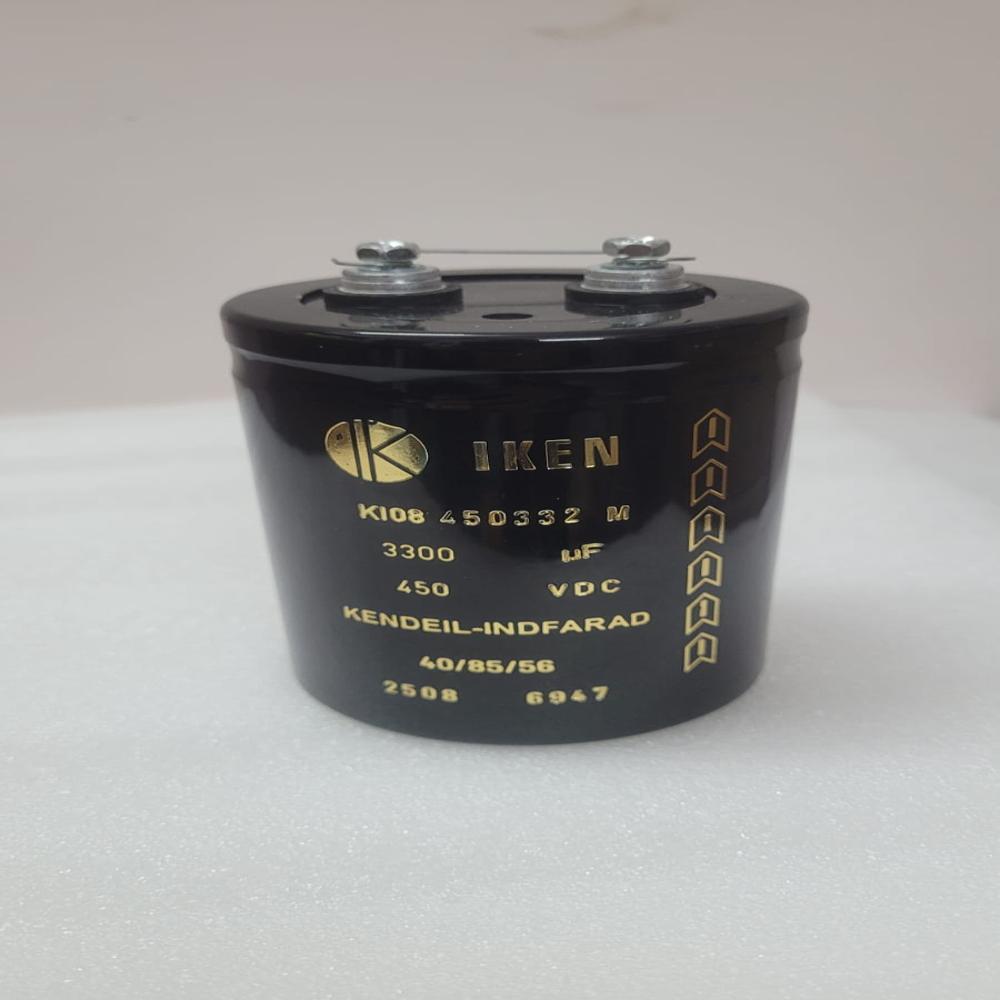

• Capacitance
• 3300F

• Capacitance Tolerance
• 20%

• Color
• Black with Gold Marking

• Current
• Other, High Ripple Current

• Frequency
• 50/60Hz

• Insulation Resistance
• >= 5000 MF (at 100V, 1 min)

• Insulation Voltage
• 500VDC

• Lead Spacing
• Not applicable (screw terminals)

• Loss Tangent
• 0.20 (at 100Hz)

• Material
• Aluminum Electrolytic

• Operating Temperature
• -40C to +85C

• Product Type
• Other, DC Capacitor

• Rated Voltage
• 450VDC

• Ripple
• High Ripple Tolerance

• Shape
• Cylindrical

• Shell
• Aluminum Can

• Size
• Approx. 76mm diameter x 90mm height

• Temperature Range
• -40C to +85C

• Terminal
• Screw Terminal
