Snubber Capacitor 2k 1KV Advance

Name: Snubber Capacitor 2k 1KV Advance
Brand: KHANDELWAL POWERTRONICS
Price: 225.0 INR
Availability: InStock

Price 225.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Snubber Capacitor 2k 1KV Advance Specification

Lead Spacing
Standard (as per drawing/spec)

Loss Tangent
0.001 (at 1kHz)

Insulation Resistance
>=30,000 M

Surface Mount Land Size
Not applicable (through-hole)

Breakdown Voltage
>1200V DC

Frequency
50/60 Hz

Insulation Voltage
>1500V AC

Current
High pulse current handling capability

Product Type
Snubber Capacitor

Material
Metallized Polypropylene Film

Capacitance
2k (2000 nF)

Shell
Plastic/Resin Encapsulated

Operating Temperature
-40C to +85C

Rated Voltage
1000V DC (1KV)

Ripple
Suitable for high ripple current

Capacitance Tolerance
10%

Temperature Range
-40C to +85C

Shape
Rectangular

Terminal
Solder Lug / Screw Terminal

Application
Snubber circuits, power electronics, IGBT protection, inverter circuits

Size
Customized/standard (not specified in image)

Color
White

Expected Life
>100,000 hours at rated conditions

Dissipation Factor
Low, <0.1% at 1kHz

Compliance
RoHS compliant

Moisture Sensitivity
Resistant

Flammability Rating
UL 94V-0

Package Type
Box

Mounting Type
Panel Mount/Chassis Mount

Type
PKC type loss

Model Number
2K 1KV ADVANCE

Self-Inductance
Low (suitable for high frequency)

Dielectric Material
Polypropylene

Rated Pulse Voltage
1200V

Snubber Capacitor 2k 1KV Advance Trade Information

Minimum Order Quantity
1 Number

Delivery Time
3 Days

About Snubber Capacitor 2k 1KV Advance

Product Overview

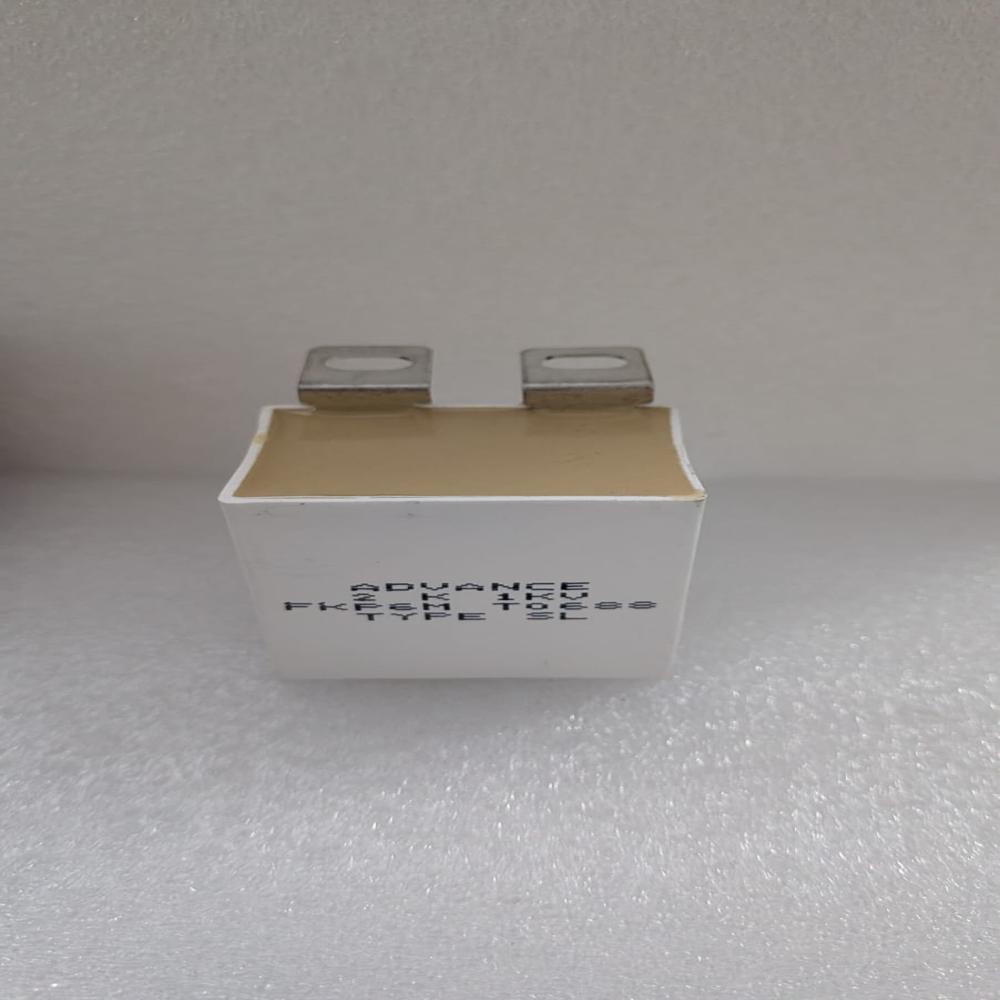

A heavy-duty, high-voltage box-type power electronic capacitor manufactured by ADVANCE. Encased in a durable, flame-retardant white plastic housing with a protective resin potting, this component features robust, heavy-gauge metal lug terminals designed for secure bolt-on connections in high-current environments.

Technical Specifications

Manufacturer: ADVANCE
Capacitance: 2mfd
Tolerance: 10%
Voltage Rating: 1000V
Series/Type: TYPE SL (FKP6M)
Terminal Type: Heavy-duty solder/bolt lugs

Key Applications

Ideal for industrial power electronics, including snubber circuits, induction heating equipment, high-frequency power supplies, UPS systems, and AC/DC filtering applications.

Advanced Polypropylene Design

Built with metallized polypropylene film, this capacitor ensures high dielectric strength and long-term stability. Its design delivers exceptional performance in high frequency and high current environments, supporting reliable operation in power electronics.

Robust Construction and Mounting

Encapsulated in a plastic/resin case with panel or chassis mount options, the 2K 1KV Advance model is suited for secure, vibration-resistant installations. The solder lug or screw terminals facilitate easy integration into various systems.

Outstanding Electrical Performance

Rated for 1000V DC with a breakdown voltage over 1200V DC, this capacitor excels in critical snubber applications. The low dissipation factor and superior insulation resistance (30,000 M) ensure minimal energy loss and extended operational life.

FAQ's of Snubber Capacitor 2k 1KV Advance:

Q: How is the Snubber Capacitor 2k 1KV Advance typically used in power electronics applications?

A: This capacitor is primarily used in snubber circuits, IGBT protection, and inverter circuits to absorb voltage spikes, manage high pulse currents, and protect sensitive semiconductor devices from damage.

Q: What mounting options are available for this capacitor and where can it be installed?

A: The capacitor offers both panel mount and chassis mount options, and is designed for through-hole installation, making it suitable for integration in cabinets, power racks, or enclosures in industrial and commercial systems.

Q: When should I consider using this specific snubber capacitor in my circuit?

A: Choose this capacitor when your application requires high pulse current handling, low self-inductance for high-frequency operation, and robust electrical isolation-especially in demanding environments where reliable, long-life performance is critical.

Q: What are the key benefits of the polypropylene dielectric and resin encapsulation?

A: Metallized polypropylene film provides excellent stability, low losses, and high dielectric strength. The resin encapsulation offers moisture resistance and enhanced durability, ensuring long operational life in harsh conditions.

Q: How do I connect the Snubber Capacitor 2k 1KV Advance to my device?

A: It features solder lug or screw terminal options for secure connections. Always follow the provided electrical diagram and torque specifications when mounting and connecting to ensure optimal performance and safety.

Q: What process does this capacitor undergo for quality and compliance?

A: This product is RoHS compliant and built to the UL 94V-0 flammability standard, with rigorous quality control ensuring that each unit meets electrical, environmental, and safety benchmarks before shipment.

Q: What ensures the long operational life of this capacitor under rated conditions?

A: The combination of high-quality materials, low dissipation factor, proper encapsulation, and resistance to moisture contributes to its expected life exceeding 100,000 hours when operated within specified conditions.
