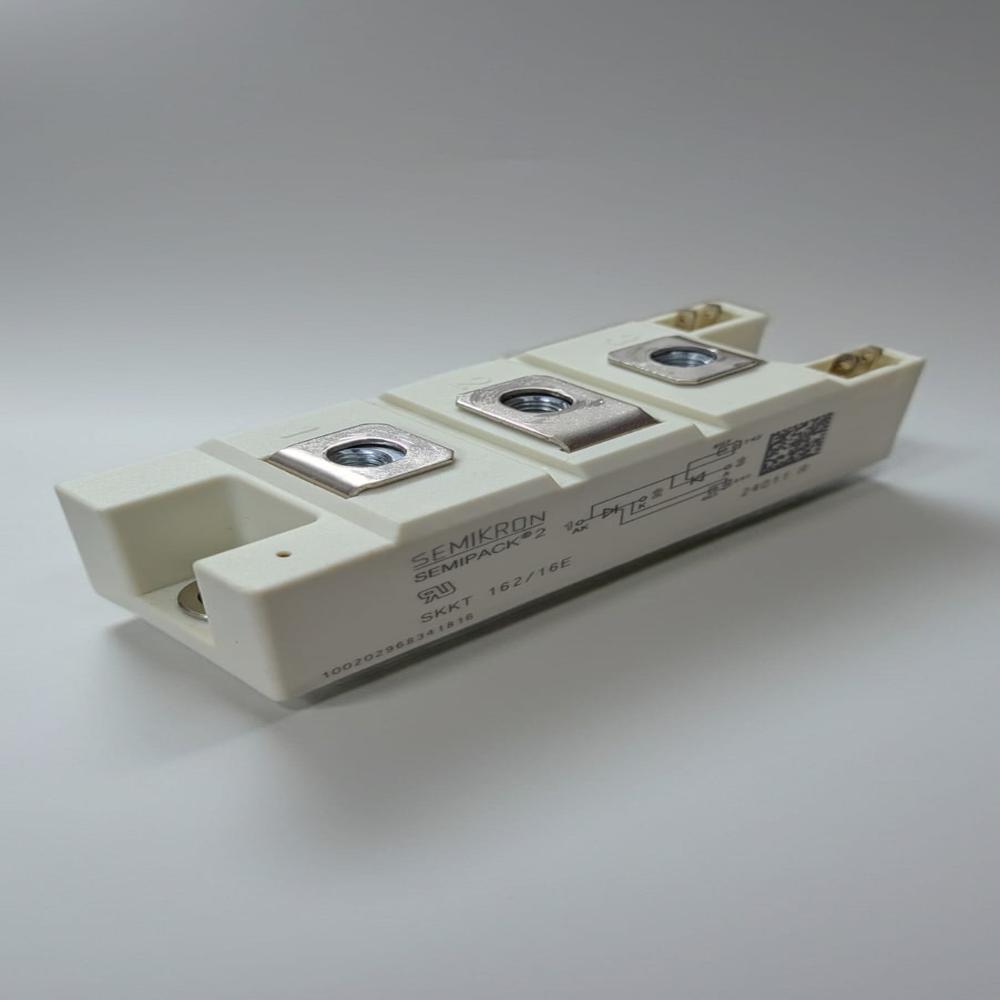

Semikron SKKT 162/16

Name: Semikron SKKT 162/16
Brand: KHANDELWAL POWERTRONICS
Price: 1850.0 INR
Availability: InStock

Price 1850.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Semikron SKKT 162/16 Specification

Input
AC

Components
2 Thyristors (SCRs) in dual configuration

Operating Temperature
-40C to +125C

Thermal Conductivity
High, with baseplate for heat sink mounting

Output
Controlled Rectified

Power Source
Electric

IP Rating
IP00

Interface
Stud Terminals for Power, Faston Tabs for Gate connections

Response Time
Fast switching

Features
Isolated Base, Compact Encapsulation, High Surge Current Capability, Maintenance-free

Usage
Power Electronics, Three Phase Rectifiers, AC/DC Motor Drives

Power Supply
Electric

Product Type
Phase Control Thyristor Module

Application
Power Switching, Motor Drives, Power Control

Rated Voltage
1600 V

Supply Voltage
1600V

Size
Industry Standard Module

Dimension (L*W*H)
106 x 45 x 30 mm (approx.)

Function
Dual Thyristor Module

Color
Black

Weight
590 g approx.

Thickness
Standard Housing

Capacity
162 A

Current Rating
162 A

Frequency
50/60 Hz

Gate Trigger Current (Igt)
150 mA (typical)

Mounting Style
Panel, with screw holes

Storage Temperature
-40C to +150C

Surge Current (ITSM)
3700 A

Model Number
SKKT 162/16

Isolation Voltage
2500 V RMS

Repetitive Peak Off-State Voltage (VDRM)
1600 V

Housing Material
Plastic, insulated base

About Semikron SKKT 162/16

SEMIKRON SEMIPACK 1 SKKT 162/16E Dual Thyristor Module

Product Overview: The SEMIKRON SKKT 162/16E is a high-reliability, industry-standard SEMIPACK 2 thyristor/thyristor module designed for robust power control applications. Featuring a dual-thyristor topology connected in series, this module delivers exceptional thermal transfer and high voltage blocking capabilities in a compact, isolated package.

Key Features:

Configuration: Dual Thyristor (SCR) Module in series connection.
Model Number: SKKT 162/16E
Package Style: SEMIPACK 2
Robust Design: Features an isolated copper baseplate using Direct Bonded Copper (DBC) technology for superior heat dissipation.
Easy Installation: Screw terminals for secure power connections and standard fast-on terminals for gate/cathode triggering.

Typical Applications:

AC motor soft starters
DC motor control and drives
Industrial heating, temperature, and light control
Controlled power rectifiers and power supplies

Reliable Power Switching Solution

The SKKT 162/16 dual thyristor module provides dependable power switching and control in various power electronics setups. Its sturdy design, high surge current rating, and effective isolation make it suitable for heavy-duty applications. With its standard panel-mounting style, it integrates seamlessly into industrial control systems, ensuring efficient handling of high currents and voltages.

Optimized for Industrial Applications

Engineered for use in three-phase rectifiers, AC/DC motor drives, and advanced power control, the SKKT 162/16 supports a broad temperature range from -40C to +125C in operation and up to +150C for storage. The module is designed for environments demanding consistent performance and longevity, thanks to its maintenance-free construction and robust encapsulation.

FAQ's of SKKT 162/16:

Q: How is the SKKT 162/16 module typically installed?

A: This module is mounted using its panel style with screw holes, allowing for secure attachment to a heat sink via an insulated baseplate, ensuring both electrical isolation and efficient thermal management.

Q: What benefits does the SKKT 162/16 offer for power switching applications?

A: It provides high surge current handling (up to 3700 A), reliable isolation (2500 V RMS), and fast switching, making it well-suited for robust and maintenance-free power switching in industrial environments.

Q: When should I use the SKKT 162/16 module in my application?

A: The SKKT 162/16 is the right choice when you require controlled rectification, motor drives, or power switching in three-phase AC circuits, especially where high current handling and reliable voltage isolation are necessary.

Q: Where is the SKKT 162/16 most commonly used?

A: Common applications include power electronics, industrial automation, three-phase rectifiers, variable frequency drives for motors, and advanced AC/DC motor control systems.

Q: What is the process for connecting the SKKT 162/16 module?

A: Connect the power cables to the stud terminals for main current paths, while the gate drives should be connected via Faston tabs, ensuring secure contacts and proper isolation. Use a suitable heat sink for thermal management.

Q: How does the SKKT 162/16's insulated base benefit system design?

A: The insulated base simplifies installation and enhances system safety by significantly reducing the risk of electrical shorts and allowing for direct mounting on a metallic heat sink without additional insulation.
