Snubber Capacitor 3uf 1000V DEC

About Snubber Capacitor 3uf 1000V DEC

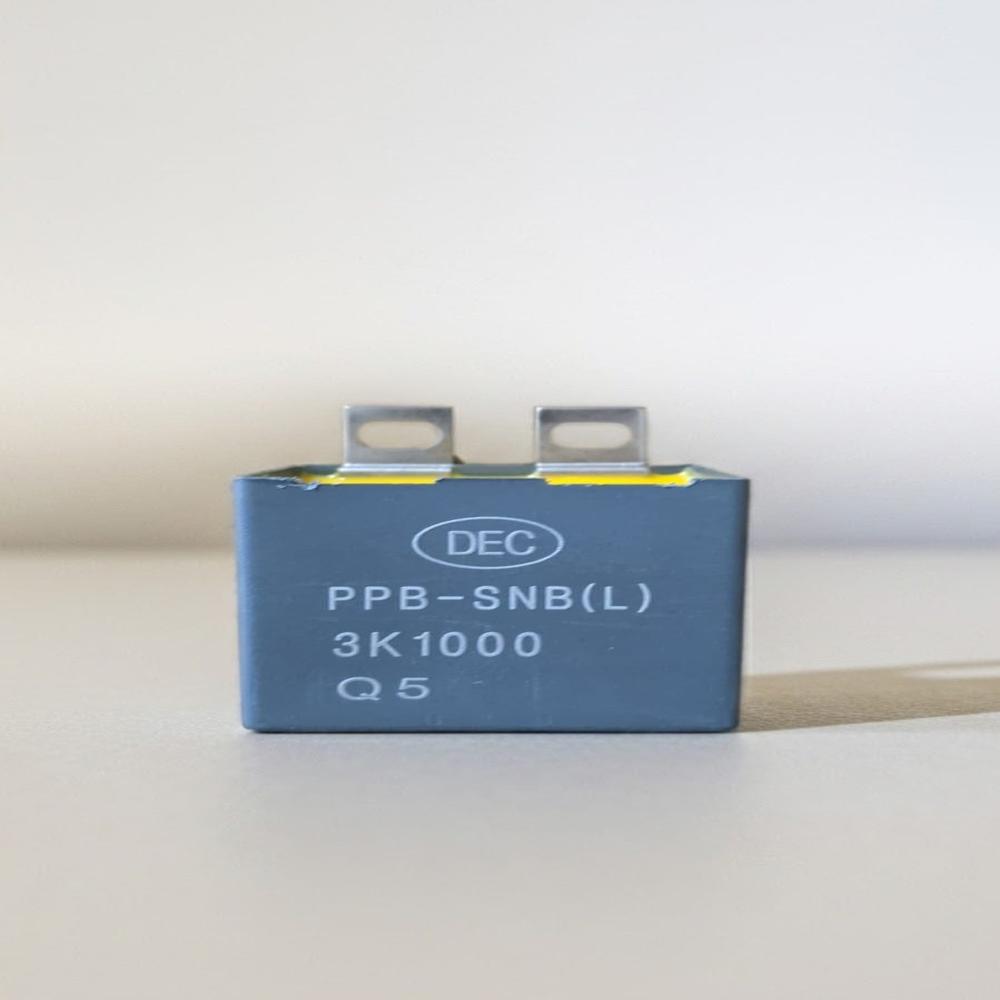

DEC PPB-SNB(L) Snubber Film Capacitor (3F, 1000V DC)

Description: The DEC PPB-SNB(L) is a high-voltage, polypropylene film snubber capacitor engineered specifically for protecting power semiconductors from damaging voltage spikes. With a capacitance of 3F and a high working voltage of 1000V DC, it features an exceptionally low self-inductance and low equivalent series resistance , enabling it to handle high peak currents ($dV/dt$) seamlessly. Encapsulated in a compact, flame-retardant box housing, it is equipped with heavy-duty, short slotted lug terminals designed for direct, low-inductance mounting onto IGBT modules or busbars.

Key Specifications:

• Manufacturer: DEC

• Series: PPB-SNB(L) (High-Performance Snubber Series)

• Capacitance: 3uf

• Tolerance: 10%

• Voltage Rating: 1000V

• Terminal Type: Compact slotted male tabs/lugs for direct module mounting

• Mounting Style: Direct-to-busbar / IGBT module mounting

Typical Applications:

• Snubber circuits for IGBT, MOSFET, and GTO thyristor protection

• Overvoltage spike suppression in high-frequency switching power supplies (SMPS)

• Industrial motor drives and induction heating systems

• Inverters and uninterruptible power supplies (UPS)
